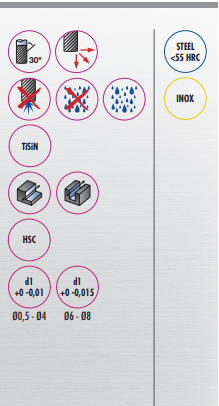

Freza conica din carbura cu 2 dinti, unghi elicoidal de 30 grade si acoperire TiSin pentru otel precalit si calit, cu HRC de pana la 50 grade. Rezistenta mare la uzura datorita acoperirii PVd pe baza de Si. Performanta remarcabila la viteze mari de aschiere datorita gradatiei WC ultrafine (0,2 Ám).

# Cod produs d1 d2 l1 l2 0 z
1 595005200 0,5 4 40 2,0 1? 2
2 595005210 0,5 4 40 2,0 3? 2
3 595005220 0,5 4 40 2,0 5? 2
4 595005230 0,5 4 40 2,5 7? 2
5 595010200 1,0 4 45 4,0 1? 2
6 595010210 1,0 4 45 4,0 3? 2
7 595010220 1,0 4 45 4,0 5? 2
8 595010230 1,0 4 45 4,0 7? 2
9 595015200 1,5 4 45 5,0 1? 2
10 595015210 1,5 4 45 8,0 3? 2
11 595015220 1,5 4 50 10,0 5? 2
12 595015230 1,5 4 50 10,0 7? 2
13 595020200 2,0 4 45 6,0 1? 2
14 595020210 2,0 4 50 10,0 3? 2
15 595020220 2,0 4 50 10,0 5? 2
16 595020230 2,0 6 50 10,0 7? 2
17 595025200 2,5 6 50 10,0 1? 2
18 595025210 2,5 6 50 12,0 3? 2
19 595025220 2,5 6 50 12,0 5? 2
20 595025230 2,5 6 50 12,0 7? 2
21 595030200 3,0 6 50 12,0 1? 2
22 595030210 3,0 6 50 12,0 3? 2
23 595030220 3,0 6 50 12,0 5? 2
24 595030230 3,0 6 50 12,0 7? 2
25 595040200 4,0 6 60 15,0 1? 2
26 595040210 4,0 6 60 18,0 3? 2
27 595040220 4,0 8 65 23,0 5? 2
28 595060200 6,0 8 65 20,0 1? 2
29 595060210 6,0 8 65 19,0 3? 2
30 595060220 6,0 10 75 23,0 5? 2
31 595060230 6,0 12 75 24,0 7? 2
32 595080200 8,0 10 90 35,0 1? 2
33 595080210 8,0 12 90 35,0 3? 2
34 595080220 8,0 16 100 45,0 5? 2
35 595080230 8,0 16 90 32,0 7? 2
